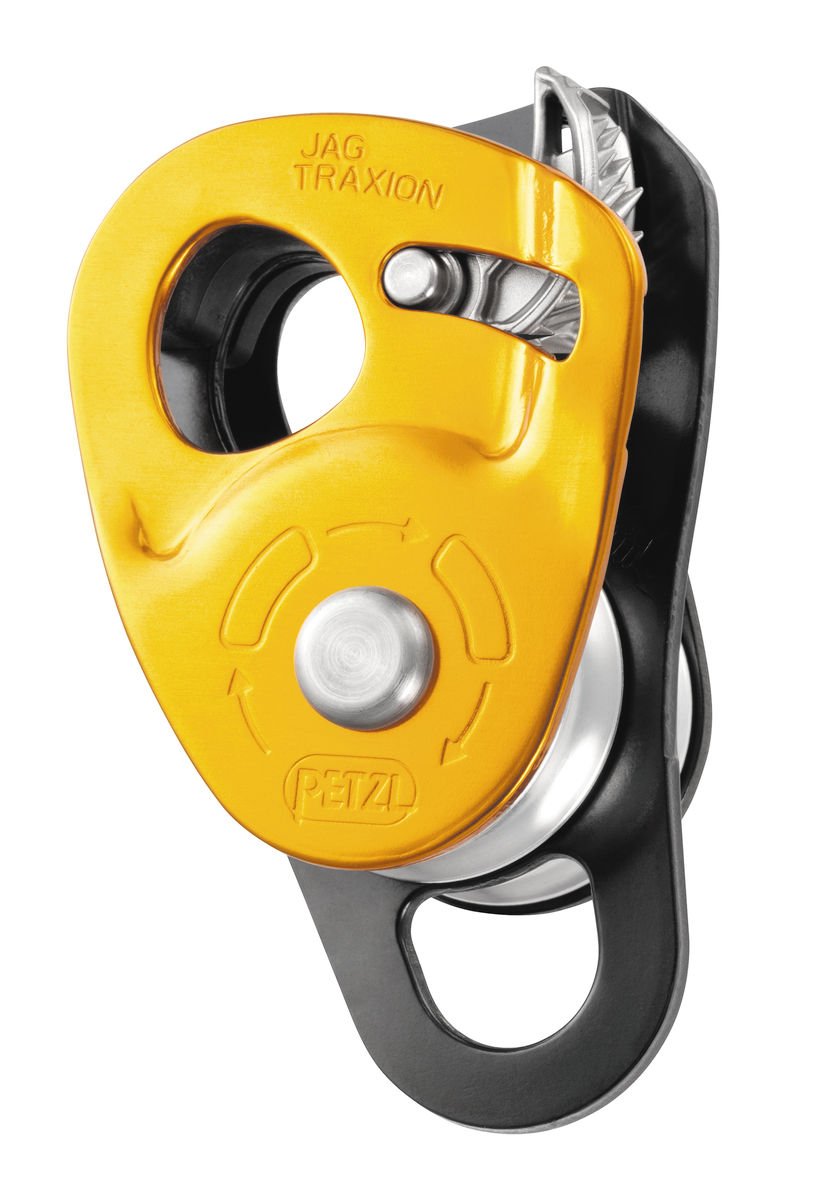

JAG TRAXION

11,500.00

High-efficiency double progress capture pulley

The JAG TRAXION double progress capture pulley is designed for use with the JAG pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

  • Designed for use with the JAG double pulley to make a 4:1 haul system
  • Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes…)
  • Sheave mounted on sealed ball bearings for excellent efficiency
Activity

Building Rescue, Flood Rescue, Haul system, Industry, Rescue, Technical Rescue

Brands

Technical Specifications

Weight: 145 g
Certification(s): CE EN 567, NFPA 1983 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %
Guarantee: 3 Years
Inner pack count: 1
