COLLINOX

15,500.00

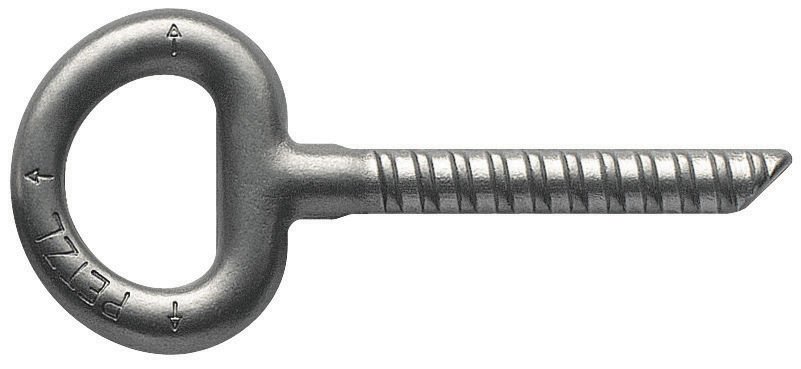

Forged stainless steel glue-in bolt (pack of 10)

Forged stainless steel glue-in bolt.

  • 10 x 70 mm

Technical Specifications

Material(s): forged stainless steel
Certification(s): EN 959
Diameter: 10 mm
Weight: 95 g
Granite, gneiss higher than 80 MPa: preliminary testing recommended
Hard limestone higher than 80 MPa: preliminary testing recommended Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended
Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing required
Very high quality concrete (civil engineering structure) higher than 50 MPa: preliminary testing recommended
Medium quality concrete from 25 to 50 MPa: preliminary testing recommended
Length: 7 cm
Drilling depth: 7-7,5 cm
Drilling diameter: 12 mm
Type of installation: G101AA00 glue (or other glues approved by Petzl)
Suggested drying time: 40 min – 10 h
Resistance to cutting on concrete 50 MPa: 25 kN
Pull-out strength in concrete 50 MPa: 15 kN
Times are given for G101AA00 glue (times may vary depending on the glue used and on the external environment)
Guarantee: 3 Years
Inner pack count: 1
