Tirfor TU EN13157 Series


The tirfor® machine is a hand-operated lifting and pulling
machine. It is versatile, portable and multi-purpose,
not only for pulling and lifting but also for lowering,
tensioning and guying

The tirfor® TU series is developed for daily heavy-duty applications under the most extreme circumstances.
The tirfor® TU hoist is a versatile and portable multi-purpose manual hoist for lifting, pulling and positioning device.

It can be used for lifting and pulling, but also for lowering, tensioning and securing loads in all directions.

One-man operation by using the telescopic control lever supplied as standard. Spare shear    pins for overload protection are supplied as standard.

Proven quality for decades, brand name and market leader – often copied never equaled

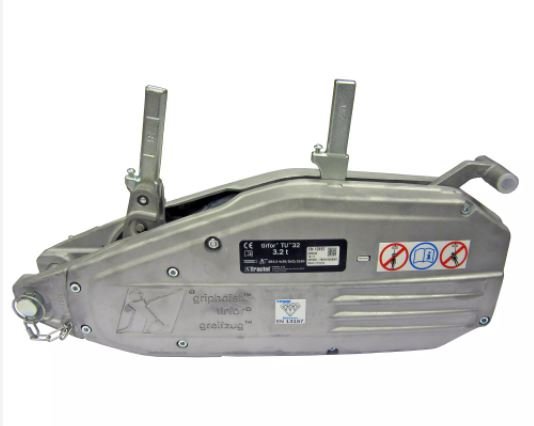

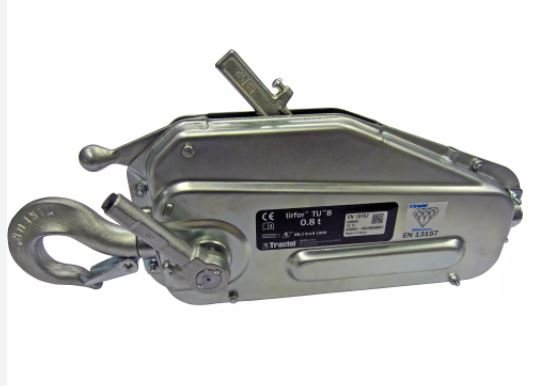

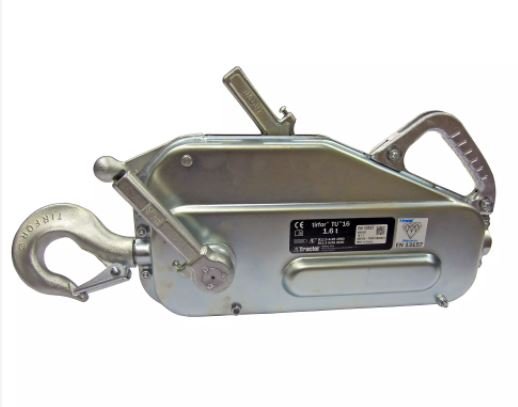

TU16, TU32, TU8


Industry, Self-Retracting Load Fall Arrest, Tractel

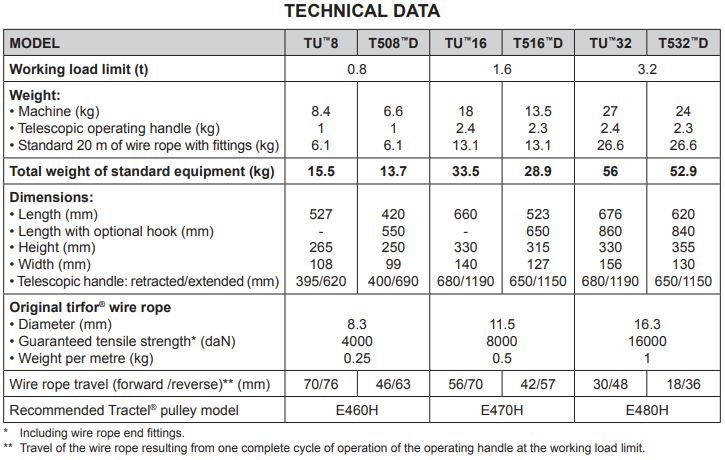

Technical Specifications

■ Lightweight and easily portable for use anywhere
■ TU™ range EN13157 FULLY compliant
■ Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length
■ Low-wear clamping jaws during demanding applications increasing the life of the wire rope
■ Overload protection for safe and secure operation
■ Fast and easy to install and use
■ Working load can be increased by using sheave blocks
■ Positioning loads with millimetre accuracy
■ Secure release system
■ Load capacity from 800 – 3200 kg
■ Full range of accessories are available – sheave blocks, diverter pulleys, ground anchors and reelers
