PCW5000-HS HIGH-SPEED GAS-POWERED PULLING WINCH GXH50

SKU: PCW5000‐HS Categories: , , Tags: , ,

The High-Speed

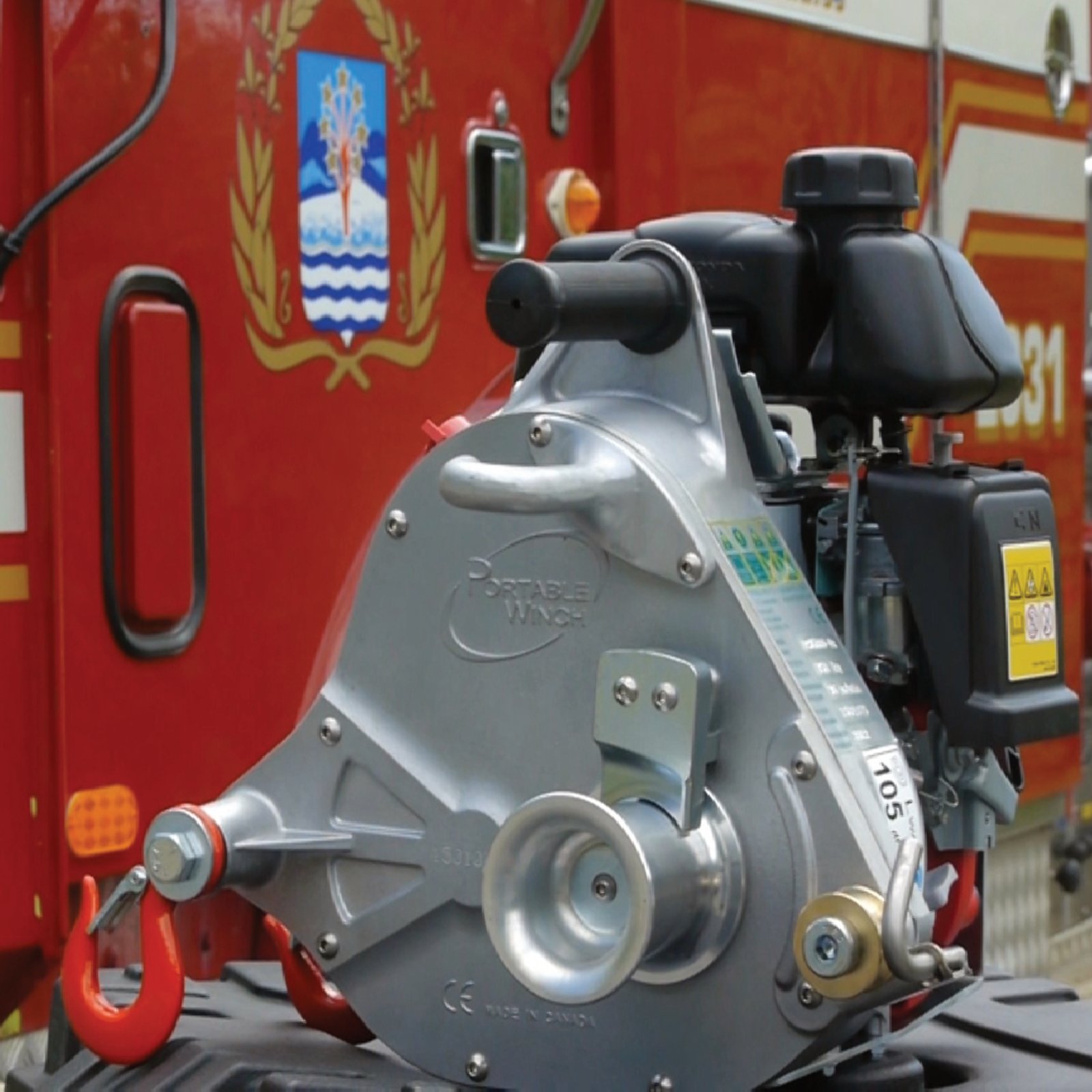

The PCW5000-HS is the fastest Portable Winch in the line-up. It is therefore ideal for jobs requiring more speed than power, such as pulling cable or installing fiber optics.

Design
Using the same successful design as the PCW5000, the PCW5000-HS is built with a gearbox optimized for speed and comes with 3-3/8” capstan drum as standard. So, at 118 feet per minute, it pulls a load three times faster than its predecessor, making it perfectly suited to pulling smaller loads over a long distance. In addition, the winch’s capstan drum concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective and safe way.

Performance
The PCW5000-HS develops a pulling force of 770 lb, without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could pull up to 3,850 lb!



Single Line Pulling Force – 770LB

Double Line Pulling Force – 1540LB

Speed – 118FT/MIN

Weight – 35LB

Motorization – HONDA 4-STROKE GXH50

Power – 1.6KW|2.1HP

Powered By – GAS

Winch Tilt – +/-20°

Commercial Use Warranty – 1 Year

Specifications

Series – Industrial
Designed in – 2011
Motor/Engine – Honda GXH50 4-stroke _ Air-cooled _ 1.6 kW – 2.1 HP @ 7,000 tr/min
Powered by – Unleaded gasoline, 86 octane or higher
Drive/Clutch – Direct drive (no clutch)
Rope Retention System – No
Drum turns when motor/engine is idling – Yes

Pulling Capacity
Standard drum (single line / double line) – Ø 3-3/8” (85 mm): 770 lb / 1,540 lb
Optional drum (single line / double line) – Ø 2-1/4” (57 mm): 1,100 lb / 2,200 lb

Lifting Capacity
Standard drum (single line / double line) – Not designed for lifting
Optional drum (single line / double line) —

Speed
Standard drum – Ø 3-3/8” (85 mm): 118’/min
Optional drum – Ø 2-1/4” (57 mm): 79’/min

Weight – 35 lb
Dimensions (overall) – 14-1/4” x 14-5/8” x 14-1/4”
Gearbox – Aluminium alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
 Gear ratio – 53:1
 Brake – Anti-reversing roller clutch bearing
Rope (not included) – Low stretch double braided polyester
 Length – Unlimited
Minimum Breaking Strength (MBS) – 2,425 lb
 Minimum diameter – Ø 3/8” (10 mm)
 Maximum diameter – Ø 1/2” (13 mm)
 Recommended diameter – Ø 1/2” (12 mm)
Included – Polyester sling – 2-1/2” x 6-1/2′
Warranty – Once purchased, register your winch online and get 1 additional year of warranty for FREE!
 Private use – 5 years
 Commercial use – 1 year
 Motor/Engine – Honda International Warranty
Certification(s) – CE
