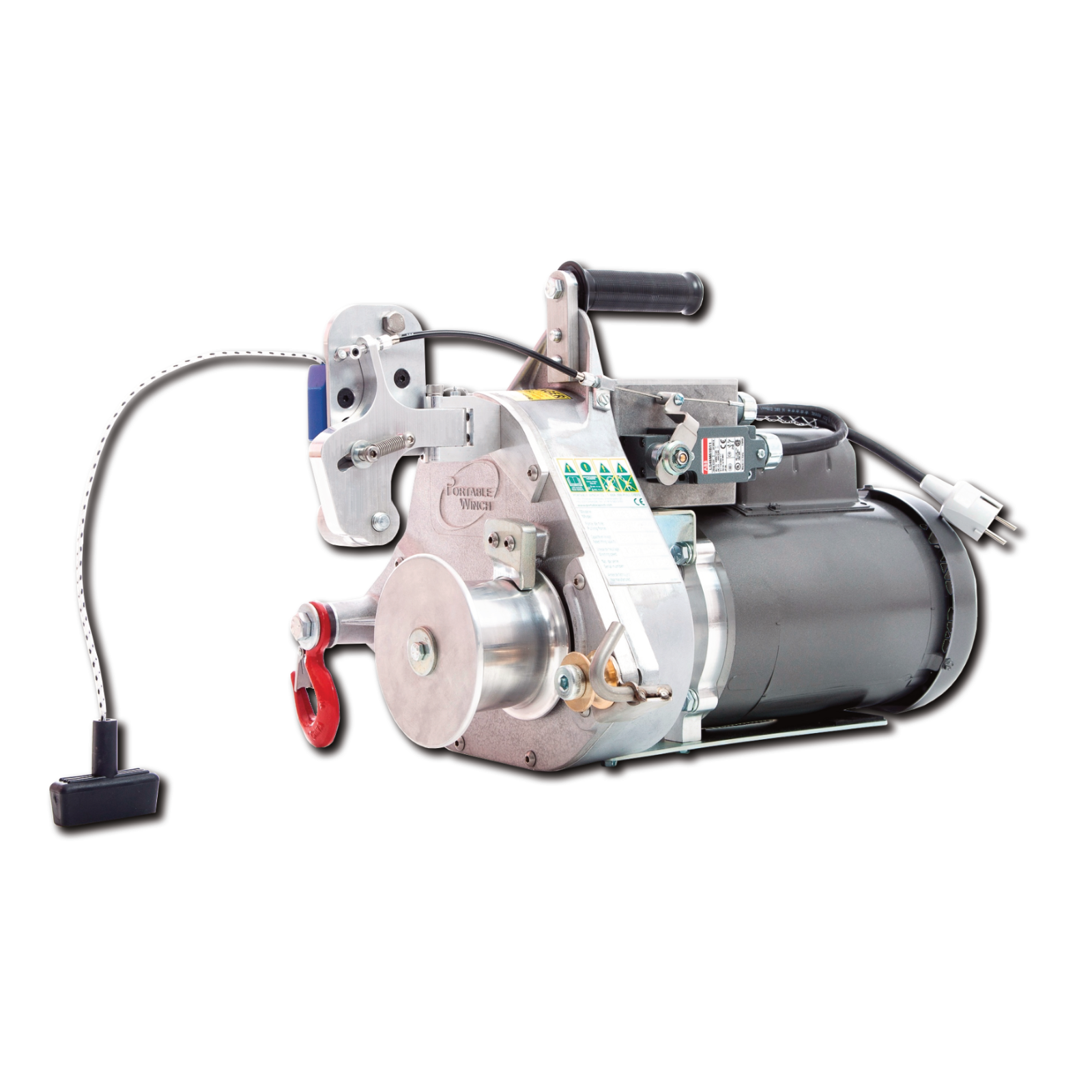

The Plug-In Winch
The PCT1800 is recommended for situations where a conventional combustion engine is unusable or where noise is a factor. This electric winch, designed for lifting and pulling, is ideal for works to be done indoors, for pulling wire through conduits for example, as well as outside, for hoisting various equipment.

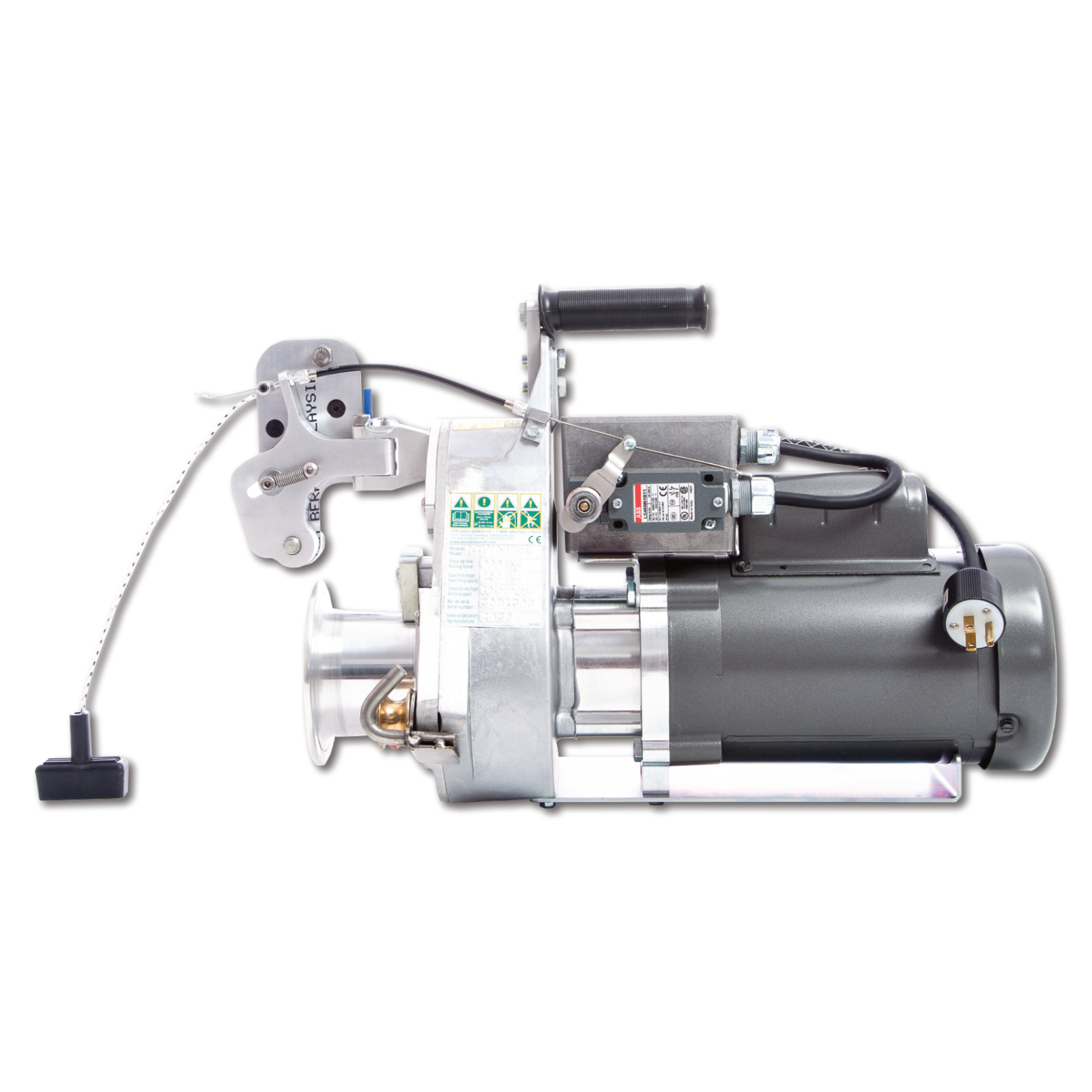

Design
As with all other Portable Winch models, the PCT1800 has a capstan drum that maintains the same force throughout the work, over an unlimited length of rope. Specifically developed for lifting winches, the rope Progressive Capture System (PCS) is found on the PCT1800 series. Once the rope is inserted into the grabbing system, the operator activates the winch and initiates the movement simply by pulling horizontally on the rope. At any time, the operator can decide to stop lifting and keep the load in suspension, without any problem. In order to lower a load, the operator must pull the grabbing system cord handle to disengage. Then, the operator will be able to control the main rope in its lowering movement. If ever the rope was to slip out of the operator’s hands, the grabbing system would grip the rope and prevent the load from collapsing to the ground.
Performance
Powered by a 1 ph – 3/4 hp electric motor, the PCT1800 develops a pulling force of 1,805 lb and offers a lifting capacity of 550 lb in a single line. Of course, a block and tackle system will allow you to increase its capacities!

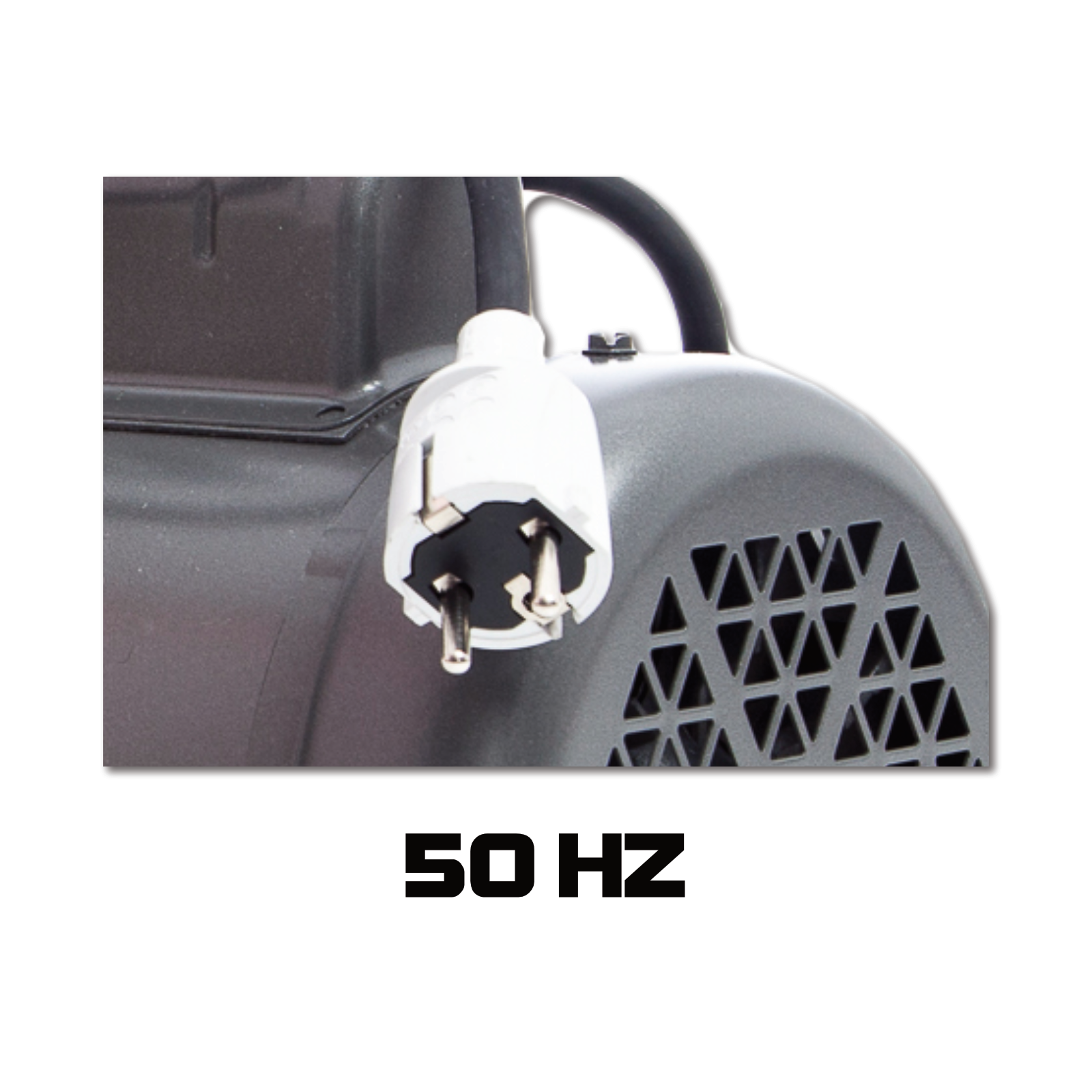

Two versions are available: 60Hz and 50Hz. Make sure you choose the correct version for your region.
Single Line Pulling Force – 1805LB
Double Line Pulling Force – 3610LB
Lifting Capacity – 550LB
Speed – 29FT/MIN (1)
24FT/MIN (2)
Weight – 53LB (1)
60LB (2)
Motorization – Baldoor 1PH
Power – 0.56KW|0.75HP
Powered By – ELEC 115V/230V (1)
ELEC 110V/220v (2)
Winch Tilt – 360°
Rope Grabbing System – PCS
Commercial Use Warranty – 1Year
Specifications
PCT1800-60Hz (1)
Series – Industrial
Designed in – 2009
Motor/Engine – Baldor AC Electric TEFC – 115/230 VAC _ 1 ph – 60 Hz _ 0.56 kW – 0.75 HP @ 3,450 tr/min
Powered by – 115 V power supply
Drive/Clutch – Direct drive (no clutch)
Rope Retention System – Progressive Capture System (PCS)
Drum turns when motor/engine is idling – No idle on electric motors
Pulling Capacity
Standard drum (single line / double line) – Ø 3-3/8” (85 mm): 1,805 lb / 3,610 lb
Optional drum (single line / double line) – Ø 2-1/4” (57 mm): 2,200 lb / 4,400 lb
Lifting Capacity
Standard drum (single line / double line) – Ø 3-3/8” (85 mm): 550 lb / 1,100 lb
Optional drum (single line / double line) – Ø 2-1/4” (57 mm): 2550 lb / 1,100 lb
Speed
Standard drum – Ø 3-3/8” (85 mm): 29’/min
Optional drum – Ø 2-1/4” (57 mm): 19’/min
Weight – 53 lb
Dimensions (overall) – 21-7/8” x 14-3/8” x 14-3/8”
Gearbox – Aluminium alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
Gear ratio – 110:1
Brake – Anti-reversing roller clutch bearing
Work cycle – 25% (15 min/h to prevent motor overheating)
Rope (not included) – Low stretch double braided polyester
Length – Unlimited
Minimum Breaking Strength (MBS) – 7,275 lb
Minimum diameter – Ø 1/2” (12 mm)
Maximum diameter – Ø 1/2” (13 mm)
Recommended diameter – Ø 1/2” (12 mm)
For lifting – Ø 1/2” (12 mm) with eye splice and thimble
Included – Polyester sling – 2-1/2” x 6-1/2′
Warranty – Once purchased, register your winch online and get 1 additional year of warranty for FREE!
Private use – 2 years
Commercial use – 1 year
Motor/Engine – Baldor (ABB) International Warranty
Certification(s) – CE
Nema Certification: IP54
Lifting Classification (ISO): M3
PCT1800-50Hz (2)
Series – Industrial
Designed in – 2009
Motor/Engine – Baldor AC Electric TEFC – 110/220 VAC _ 1 ph – 50 Hz _ 0,56 kW – 0,75 HP @ 2,850 tr/min
Powered by – 220 V power supply
Drive/Clutch – Direct drive (no clutch)
Rope Retention System – Progressive Capture System (PCS)
Drum turns when motor/engine is idling – No idle on electric motors
Pulling Capacity
Standard drum (single line / double line) – Ø 3-3/8” (85 mm): 1,805 lb / 3,610 lb
Optional drum (single line / double line) – Ø 2-1/4” (57 mm): 2,200 lb / 4,400 lb
Lifting Capacity
Standard drum (single line / double line) – Ø 3-3/8” (85 mm): 550 lb / 1,100 lb
Optional drum (single line / double line) – Ø 2-1/4” (57 mm): 2550 lb / 1,100 lb
Speed
Standard drum – Ø 3-3/8” (85 mm): 24’/min
Optional drum – Ø 2-1/4” (57 mm): 16’/min
Weight – 60 lb
Dimensions (overall) – 21-7/8” x 14-3/8” x 14-3/8”
Gearbox – Aluminium alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
Gear ratio – 110:1
Brake – Anti-reversing roller clutch bearing
Work cycle – 25% (15 min/h to prevent motor overheating)
Rope (not included) – Low stretch double braided polyester
Length – Unlimited
Minimum Breaking Strength (MBS) – 7,275 lb
Minimum diameter – Ø 1/2” (12 mm)
Maximum diameter – Ø 1/2” (13 mm)
Recommended diameter – Ø 1/2” (12 mm)
For lifting – Ø 1/2” (12 mm) with eye splice and thimble
Included – Polyester sling – 2-1/2” x 6-1/2′
Warranty – Once purchased, register your winch online and get 1 additional year of warranty for FREE!
Private use – 2 years
Commercial use – 1 year
Motor/Engine – Baldor (ABB) International Warranty
Certification(s) – CE
Nema Certification: IP54
Lifting Classification (ISO): M3
