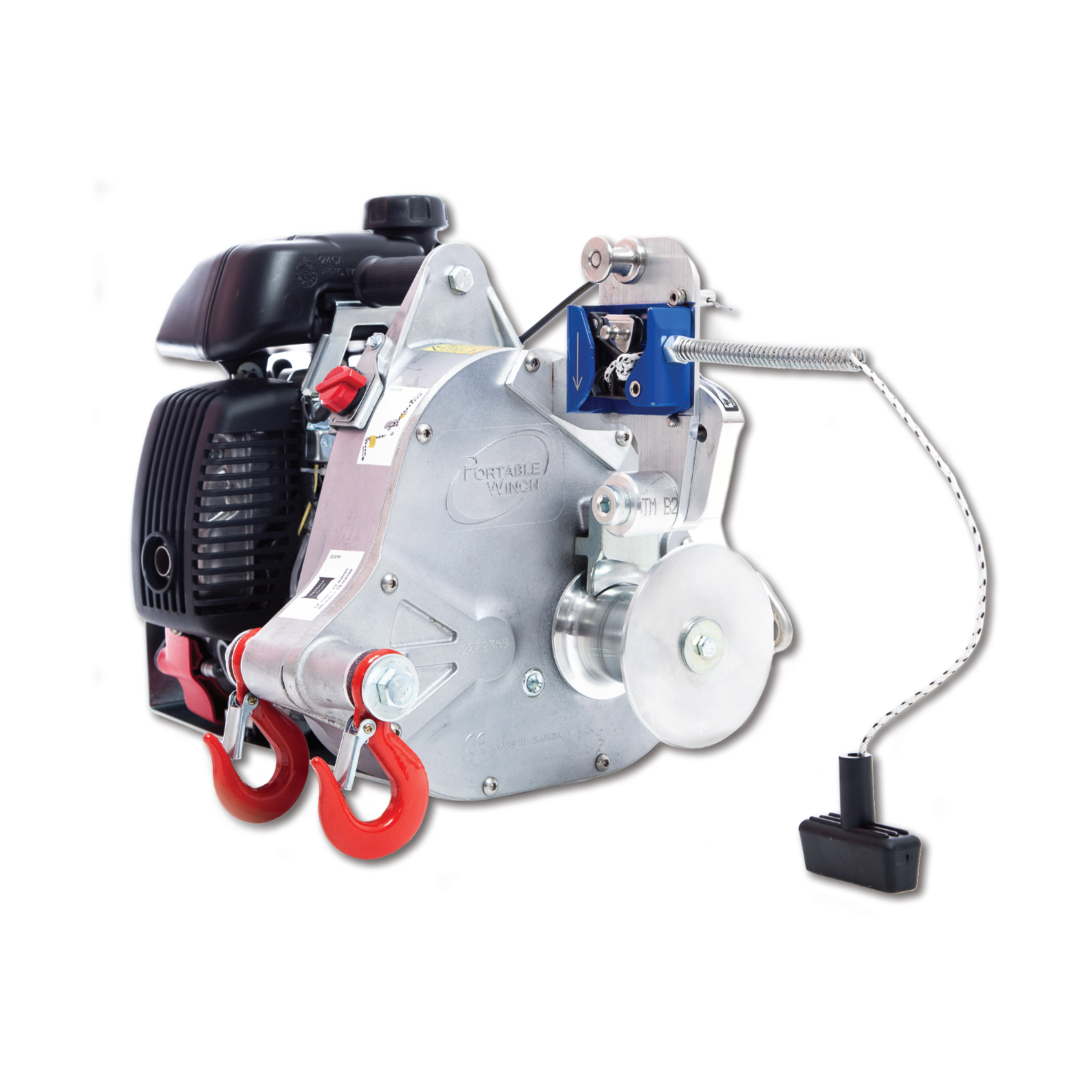

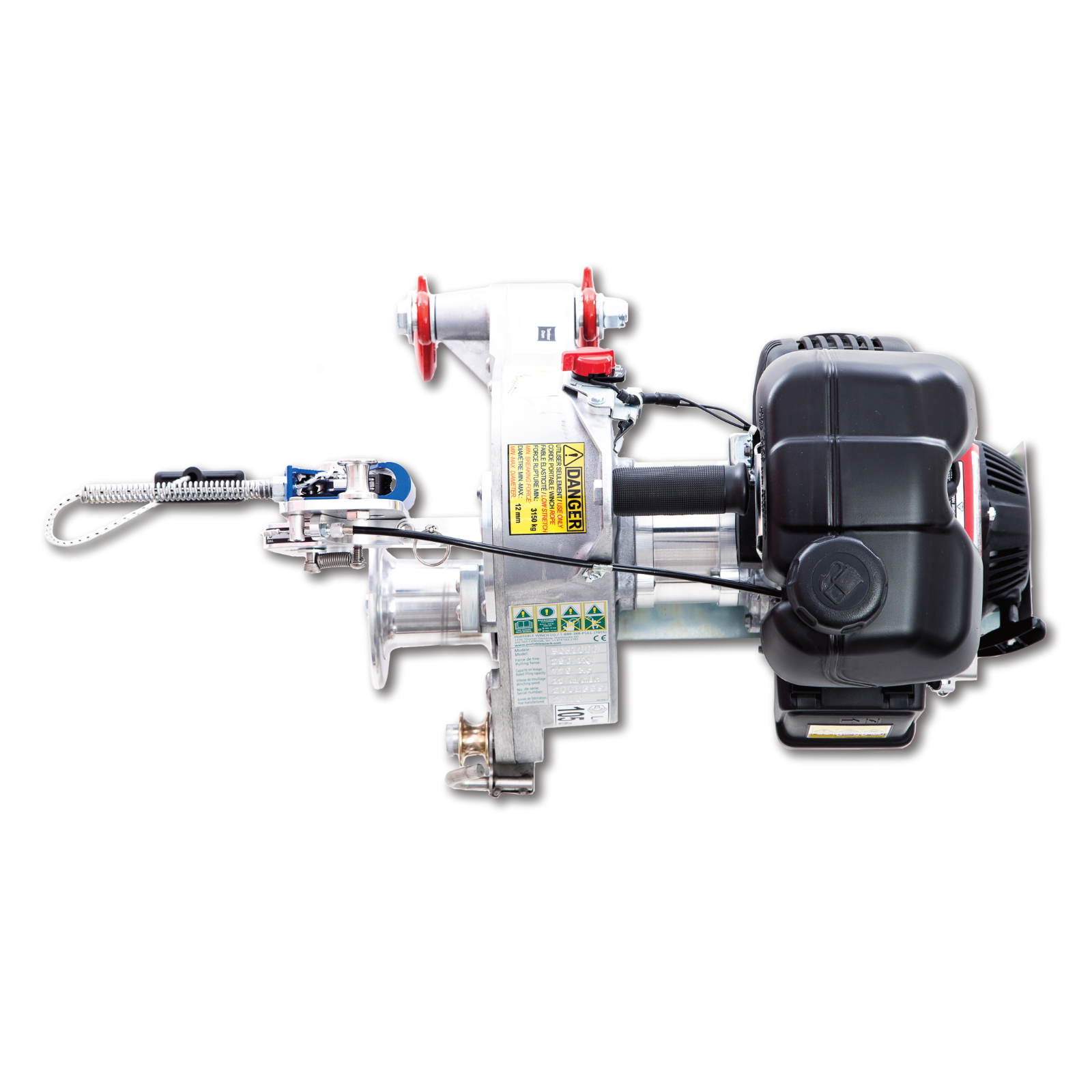

PCH1000 GAS-POWERED PULLING/LIFTING WINCH GXH50

401,600.00

PCH1000 GAS-POWERED PULLING/LIFTING WINCH
GXH50

SKU: PCH1000 Categories: , , Tags: , ,

Lifting in complete safety

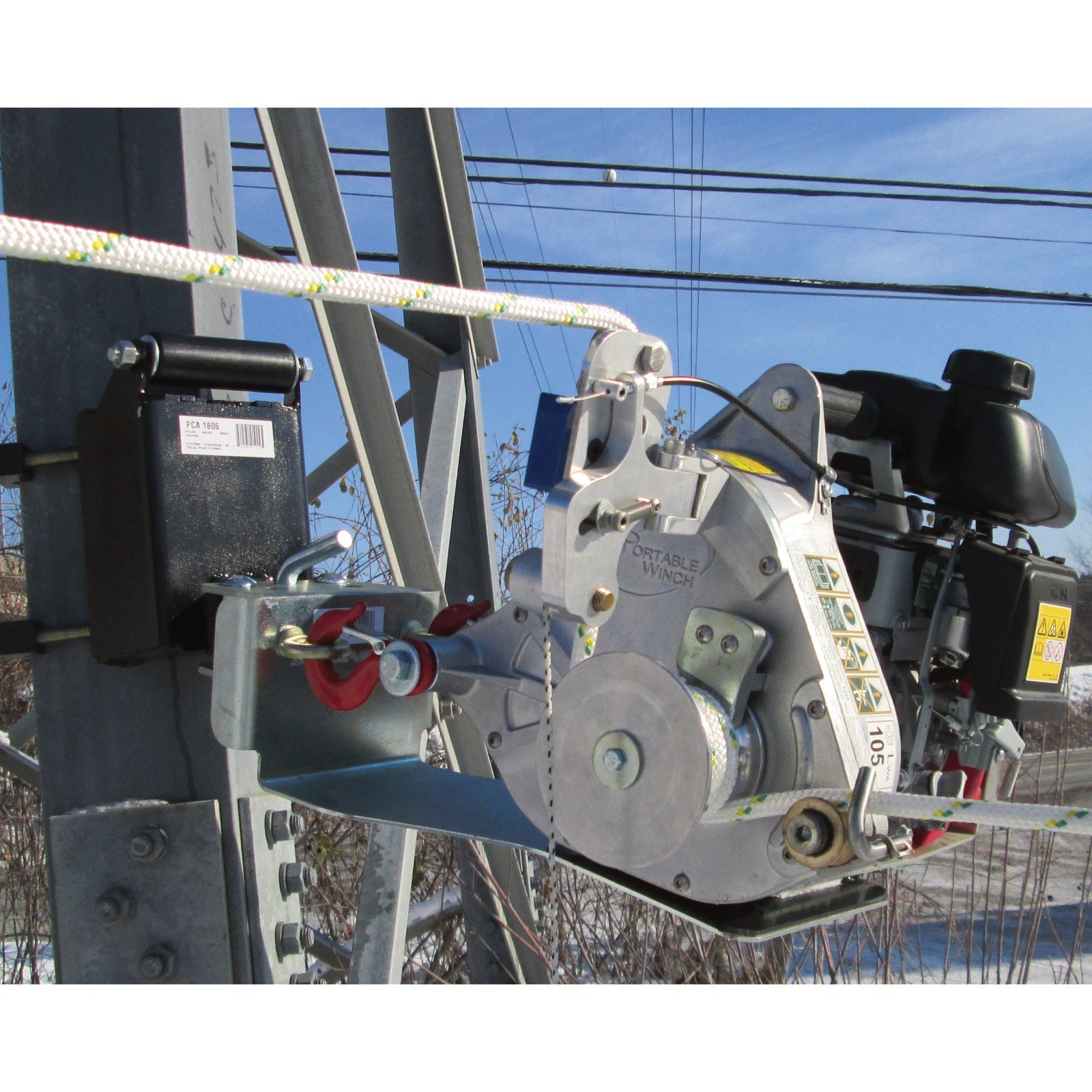

Specifically designed for the lifting needs of the industrial sector, the PCH1000 features the Progressive Capture System (PCS), which is essential for lifting, lowering and holding loads safely. Whether for telecommunications structures assembly, for lifting various equipment on a site or simply for pulling loads, the PCH1000 is versatile and safe. In addition, a wide variety of anchoring systems are available so you can easily do your setup.

Design
Located between the engine and the gearbox, the clutch system ensures that the capstan drum does not rotate when the engine idles. Once the rope is inserted into the PCS, the operator activates the clutch and initiates the movement simply by pulling on the rope horizontally. The rope grabbing system prevents the rope from slipping on the drum and holds the load when the rope is released. The winch can also be used to lower a load by disengaging the Progressive Capture System. To do this, the operator should simply pull the handle of the grabbing system cord and control the main rope during the descent.

Performance
Equipped with the 4-stroke GXH50 Honda engine, the PCH1000 develops a pulling force of 1,710 lb and offers a lifting capacity of 550 lb in a single line setup. Of course, a block and tackle system will allow you to increase its capacity!



Single Line Pulling Force – 1710LB

Double Line Pulling Force – 3420LB

Lifting Capacity – 550LB

Speed – 40FT/MIN

Weight – 42LB

Motorization – Honda 4-Stroke GXH50

Power – 1.6KW|2.1HP

Powered By – GAS

Winch Tilt – +/-20°

Rope Grabbing System – PCS

Clutch – Centrifugal

Commercial Use Warranty – 1 Year

Specifications

Series – Industrial
Designed in – 2009
Motor/Engine – Honda GXH50 4-stroke _ Air-cooled _ 1.6 kW – 2.1 HP @ 7,000 tr/min
Powered by – Unleaded gasoline, 86 octane or higher
Drive/Clutch – Centrifugal
Rope Retention System – Progressive capture system (PCS)
Drum turns when motor/engine is idling – No

Pulling Capacity
Standard drum (single line / double line) – Ø 2-1/4” (57 mm): 1,710 lb / 3,420 lb
Optional drum (single line / double line) – Ø 3-3/8” (85 mm): 1,190 lb / 2,380 lb

Lifting Capacity
Standard drum (single line / double line) – Ø 2-1/4” (57 mm): 550 lb / 1,100 lb
Optional drum (single line / double line) – Ø 3-3/8” (85 mm): 385 lb / 770 lb

Speed
Standard drum – Ø 2-1/4” (57 mm): 40’/min
Optional drum – Ø 3-3/8” (85 mm): 60’/min

Weight – 42 lb
Dimensions (overall) – 19-7/8” x 14-5/8” x 14-1/4”
Gearbox – Aluminium alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
 Gear ratio – 110:1
 Brake – Anti-reversing roller clutch bearing
Rope (not included) – Low stretch double braided polyester
 Length – Unlimited
Minimum Breaking Strength (MBS) – 7,275 lb
 Minimum diameter – Ø 1/2” (12 mm)
 Maximum diameter – Ø 1/2” (13 mm)
 Recommended diameter – Ø 1/2” (12 mm)
 For lifting – Ø 1/2” (12 mm) with eye splice and thimble
Included – Polyester sling – 2-1/2” x 6-1/2′
Warranty – Once purchased, register your winch online and get 1 additional year of warranty for FREE!
 Private use – 2 years
 Commercial use – 1 year
 Motor/Engine – Honda International Warranty
Certification(s) – CE
Lifting Classification (ISO): M3
